RSA

MRZ-4 Multi-Head Recessed Integral LED

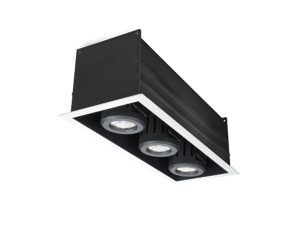

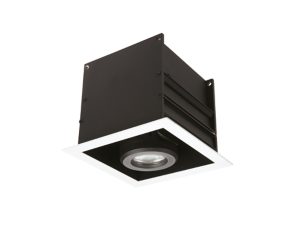

Family of 1, 2, 3, or 4-head fixtures
Lumen packages from 250 to 1700+ per head in 80+ or 97+ CRI, +110 LPW
25˚, 40˚, 55˚optics, each head has 45˚ tilt with 365˚ degree rotation
Black housing & white trim/white housing & trim/black housing & trim
IC-rated fixtures with flanged and mud-in trims
0-10V std dimming. Optional: 0.1%, 1%, Lutron, and Fifth Light DALI
LumaWatt Pro and WaveLinx connected lighting platforms available
Linear spread lens, soft focus lens, hex louver, and snoot option
Chicago plenum and emergency battery options

Spec Sheets

Photometrics

Where to Buy

MRZ-4 Multi-Head Recessed Integral LED

Where to Buy Contact Us

Multi-Head, Adjustable, Integral LED Luminaires

A wide breadth of options and features place the MRZ family in a class of its own—at an economical vantage point. Available in 1, 2, 3 or 4-head, it is is used in retail, commercial, and hospitality applications to intensify and illuminate spaces with high performance and quality. With multiple lumen packages, rotating heads, and a range of control options, MRZ is perfect for accent, wall wash, or ambient lighting.

Ideal for these spaces:

Commercial

Hospitality

Retail

Where Old Meets New

From the days of halogen, metal halide, and incandescent lamp sources to a new era of high performing optical design, elegance, and performance—this multi-head LED series spans generations of lighting sources.

A Movement of Flux

A wide lumen range from 250 to 1700+, from one source provides outputs to meet most requirements. Three different optical distributions are available to accommodate most accenting needs: 25° (narrow flood), 40° (flood), and 55° (wide flood) beam optics. Each fixture head allows for 45° tilt out of the luminaire and 365° of rotation for full aiming flexibility, so you can put the light right where you want it.

A Movement of Color

The RSA-MRZ has several color features. They include the housing/trim finish options, the color of the LED (CCT), the color truth in LEDs (CRI), and the color quality as defined by TM-30. The RSA-MRZ has excellent color quality in the higher CRI option (97+), resulting in higher quality TM-30 metrics.
