HALO

RSQ Square Recessed Baffle LED Trims

  • Square 4", 5”, and 6" sizes available
  • Install into most recessed housings; the rotatable trim makes alignment easy
  • 6-Position Switch: 5-color Field-SeleCCTable (2700K, 3000K, 3500K, 4000K, 5000K) + Dim-to-Warm (3000K dims to 1800K); 90+ CRI
  • Lens & Trim: Shallow square diffuse lens and non-conductive, dead-front baffle trim
  • Brightness: Lumen Select 4" 600/900 lumens; 5" & 6" 600/1000 lumens (nominal)
  • Dimming: Dims to 5% (phase cut LE/TE) with compatible dimmers; 120V input
  • Mounting hardware, orange LED Quick Connect and E26 adapter included
  • AIR-TITE, wet location-listed, IC-rated, and ENERGY STAR® certified
  • 50,000 hrs of maintenance-free operation
  • 5-year warranty
RSQ Square Recessed Baffle LED Trims

RSQ Square Recessed Baffle LED Trims

Overview

The RSQ Series is the perfect lighting solution for low to medium-height ceilings. A shallow square lens and rotatable baffle trim make installation and alignment a breeze. With the Lumen Select Switch and flicker-free 5% dimming, you can easily customize the lighting levels to fit your needs. And the 6-position CCT switch offers a range of 5 color temperatures, plus Dim-to-Warm allowing you to create your own amazing ambiance. HALO RSQ LED Trims are suitable for new construction, remodel, and retrofit installation in most IC (insulation contact) or non-IC housings. They’re AIR-TITE, code-compliant, and provide additional energy savings. Upgrade your lighting with the RSQ Square Recessed LED Trims today.

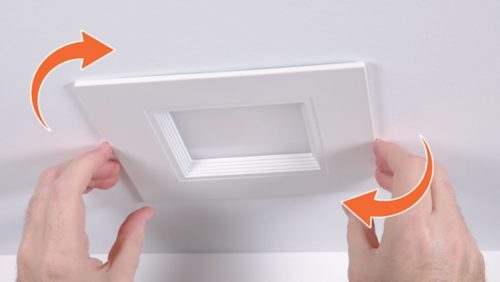

Below-the-ceiling alignment

Below-the-ceiling alignment

RSQ Series square trims are rotatable, making the infamous challenge of aligning square fixtures a breeze.

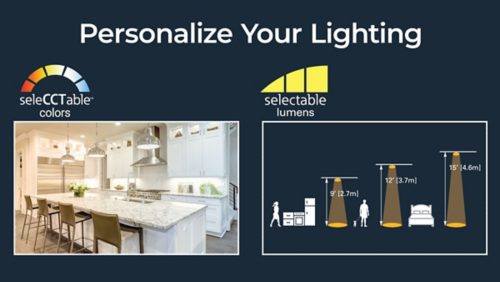

SeleCCTability at your fingertips

SeleCCTability at your fingertips

Select the perfect light during installation. Select how bright based on ceiling height, then find the perfect color temp from Dim-to-Warm (3000K down to 1800K) or 5 color temperatures from warm white (2700K) to daylight (5000K).

Set the mood with a dimmer

Set the mood with a dimmer

Create a rich, inviting glow with the Dim-to-Warm setting. At 100%, the fixtures are bright white (3000K) and dim down smoothly to a warm candlelight (1800K).
