HALO

RA Baffle Recessed Adjustable LED Trims

3", 4" and 5"/6" LED trims for new construction or remodel recessed housings
Adjustable gimbal tilts up to 35° and rotates 360° to aim light where it's needed
6-Position Switch: 5-color Field-SeleCCTable (2700K, 3000K, 3500K, 4000K, 5000K) + Dim-to-Warm (3000K dims to 1800K); 90+ CRI
Selectable Lumens: 4"-600/900lm; 5"/6"-600/1000lm; (3"-500lm only)
Dimming: Dims to 5% (phase cut LE/TE) with compatible dimmers; 120V input
Mounting hardware, orange LED Quick Connect, and E26 adapter included
AIR-TITE, wet location-listed, IC-rated, and ENERGY STAR® certified
50,000 hrs of maintenance-free operation

Spec Sheets

Photometrics

Where to Buy

RA Baffle Recessed Adjustable LED Trims

Where to Buy Contact Us

Overview

HALO RA Baffle Recessed Adjustable LED Trims are ideal for aiming light in sloped ceiling, task lighting, or wall washing applications. The adjustable gimbal tilts up to 35° and rotates 360°, so you have full, below-the-ceiling control to aim the light where you want it. These recessed LED trims are a great solution for retrofit, remodel, and new construction applications. And the 6-position CCT switch offers a range of 5 color temperatures, plus Dim-to-Warm allowing you to create your own amazing ambiance. The RA recessed LED trim includes selectable lumens, so you can select your preferred brightness depending on your ceiling height.

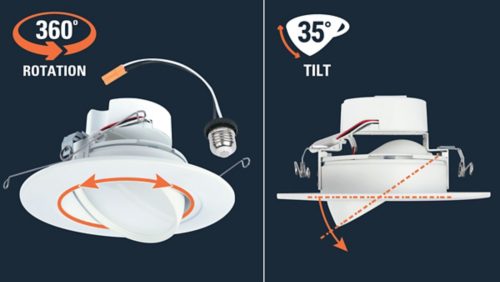

Below-the-ceiling adjustment

Adjustable gimbal tilts up to 35° and rotates 360° to easily aim light in wall wash, task lighting, or slope ceiling applications.

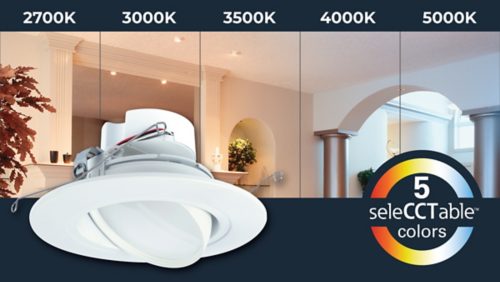

SeleCCTability at your fingertips

Select the perfect light during installation. First, choose one of the 5 color temperatures between soft white (2700K) and daylight (5000K) or the dim-to-warm setting (3000K dims to 1800K). Then, depending on your ceiling height and lighting needs, use the lumen select switch to set the fixture's maximum brightness level.
