HLB4S LED 4" MicroEdge™ Direct Mount Downlight

Ultra-thin square lens downlight with remote driver/junction box
Install into drywall/suspended ceilings (no J-box or housing required)
Install from below the ceiling in as little as a 1-1/2" plenum height
5 selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT
CRI: 90; L70 at 50,000 hours (70% lumen maintenance at 50,000 hours)
Wet location listed for showers and protected ceilings
For Insulated Ceiling (IC) rated and Non-IC rated applications
120V; Phase dimming down to 5%; Lumens: up to 750
AIR-TITE™ reduces airflow between unconditioned and conditioned spaces
ENERGY STAR™ certified; 5-year warranty

Spec Sheets

Photometrics

Where to Buy

HLB4S LED 4" MicroEdge™ Direct Mount Downlight

Where to Buy Contact Us

No housing needed! Ultra-thin solution with SeleCCTable technology saves time and money

For new construction or renovation projects, the ultra-thin MicroEdge lens downlight simplifies installation by installing directly into drywall or suspended ceilings without the need for a recessed housing or junction box, saving time and money. The HLB4S features 5 field-selectable color temperatures and the textured lens provides smooth light distribution for general area lighting applications in low to medium height ceilings.

Ideal for these spaces:

Residential Interior

Mixed Use

Commercial Downlight

Ultra-thin solution

The ultra-thin MicroEdge downlight is for new construction and renovation work and can install from below the ceiling in as little as a 1-1/2" plenum height. The HLB downlights can be used in direct contact with insulation and is airtight, reducing airflow between unconditioned and conditioned spaces and meeting restricted air flow requirements.

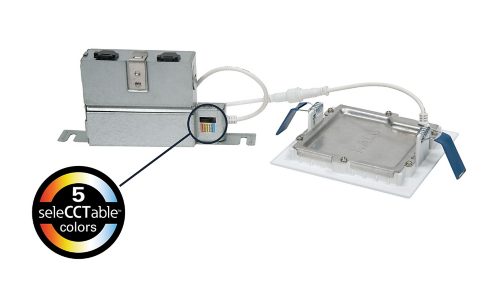

Field SeleCCTable color temperatures

SeleCCTable technology puts flexibility at your fingertips. By using the switch located on the driver junction box, the user can choose from a range of five color temperatures from 2700K - 5000K.

Installs virtually anywhere

The MicroEdge products install into a standard hole saw size cutout and is retained securely in place with springs. The driver box installs through a cutout and can be positioned remotely from the fixture fitting. The keyhole slots facilitate attachment to the building structure.
