HALO Commercial

HCM1-2-3-4 Multiples Series

  • 1, 2, 3, or 4 multi-head recessed luminaires
  • Flange trim standard, rimless mud-in field installation kit available
  • Matte White and Matte Black finish options
  • 90 CRI, 2700K, 3000K, 3500K, 4000K CCT
  • Each multi-head delivers greater than 1200 lumens (nominal)
  • Narrow Flood optic pre-installed, Spot & Flood optional accessories
  • Multi-heads rotate 355˚ and tilt 0-70˚ from nadir
  • Universal Voltage 120V – 277V
  • 1%-100% dimming on 0-10V controls at 277V
  • 1%-100% dimming on LE/TE phase-control dimmers at 120V
HCM1-2-3-4 Multiples Series

HCM1-2-3-4 Multiples Series

HCM1 - HCM2 - HCM3 - HCM4 Recessed Multiples Series

HCM Multiples feature 1, 2, 3 or 4 multi-heads in a recessed housing. Multi-heads have 0-70° tilt and 355° rotation with 25° Narrow Flood optic included and 15° Spot, 40° Flood available for field change. HCM is 90CRI in 2700K, 3000K, 3500K, 4000K with 1200 lumens per head (nominal). New construction and remodel housings are IC rated in matte white or matte black with Chicago Plenum, emergency and WaveLinx options. HCM is 120-277V with 1%-100% 0-10V dimming and 1%-100% phase dimming capable.

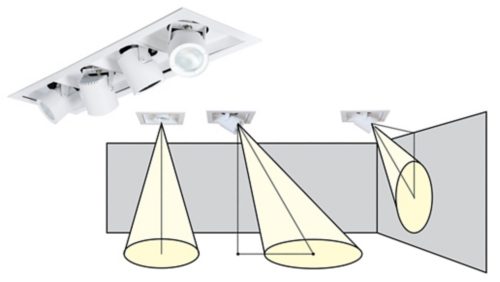

Versatility in One Recessed Housing

Versatility in One Recessed Housing

- Directional lighting for focus and brightness - 1-light, 2-light, 3-light, 4-light multi-heads - Pull-Down heads - Adjustable rotation and tilt - Directional beam forming optics

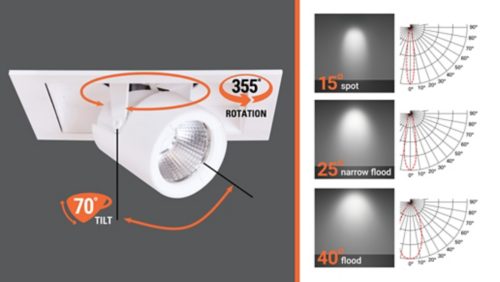

Full Aiming Flexibility

Full Aiming Flexibility

Adjustable pull-down heads feature 355° rotation and 0 to 70° tilt from nadir. Directional optics in three different optical distributions from interchangeable reflectors with 15° Spot, 25° Narrow Flood, 40° Flood beam optics.

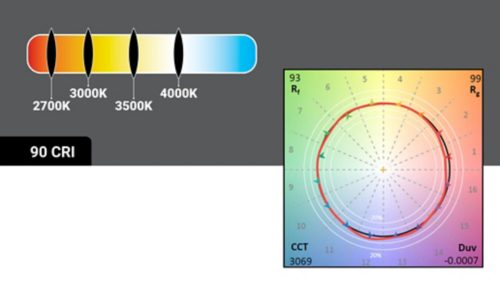

Color Temperature Options

Color Temperature Options

The HALO Commercial Multiples offer a selection of color temperatures from 2700K to 4000K at 90CRI, with high R9 value. Color quality confirmed with TM-30 metrics.

Quick Spec

Quick Spec

Quick Spec is your solution for fast-moving construction projects that require quick access to information, a broad portfolio of lighting and control products, shipping in 10 days or less.

Learn More

Resources

Spec Sheets

(1)

High Res Images

(3)

Installation Instructions

(2)

Product Selection Guides

(2)

Revit Files

(1)

Sell Sheets

(2)

Technical Information

(1)

Stock Catalog Number (39)

Lamp Type
Mounting
Voltage rating
Wattage
Filters
Catalog number
HCM15SP
Lamp Type
N/A
Mounting
Accessory
Voltage rating
120-277V
Wattage
N/A
Catalog number
HCM1930ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCM1935ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCM1935ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCM1940ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCM1FLMB
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM1FLMW
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM25NFL
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM2930ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCM2930ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCM2935ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120V-277V
Wattage
27.7W
Catalog number
HCM2940ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCM2FLMB
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM2FLMW
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM3930ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120V-277V
Wattage
41.02W
Catalog number
HCM3935ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
41.02W
Catalog number
HCM3940ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120V-277V
Wattage
41.02W
Catalog number
HCM3940ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
41.02W
Catalog number
HCM3FLMB
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM40FL
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM4930ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
54.8W
Catalog number
HCM4935ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
54.8W
Catalog number
HCM4935ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
54.8W
Catalog number
HCM4940ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
54.8W
Catalog number
HCM4FLMB
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCM4FLMW
Lamp Type
N/A
Mounting
Accessory
Voltage rating
N/A
Wattage
N/A
Catalog number
HCMR1930ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCMR1930ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCMR1935ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCMR1940ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
14.9W
Catalog number
HCMR2930ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCMR2930ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCMR2935ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCMR2935ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCMR2940ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
27.7W
Catalog number
HCMR3935ED010MB
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
41.02W
Catalog number
HCMR3935ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
41.02W
Catalog number
HCMR4935ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
54.8W
Catalog number
HCMR4940ED010MW
Lamp Type
LED
Mounting
Recessed
Voltage rating
120-277V
Wattage
54.8W
